Mobile-O

Unified Multimodal Understanding and Generation on Mobile Device

Abdelrahman Shaker1,∗,†, Ahmed Heakl1,∗, Jaseel Muhammad1, Ritesh Thawkar1, Omkar Thawakar1, Senmao Li1,
Hisham Cholakkal1, Ian Reid1, Eric P. Xing1,2, Salman Khan1,†, Fahad Shahbaz Khan1,3,†
1Mohamed bin Zayed University of Artificial Intelligence   2Carnegie Mellon University   3Linköping University
*Equal Contributions   †Project Leaders
Paper Code 🤗 Models 🤗 Datasets Live Demo App Store
1.6B
Total Parameters
~3s
Image Generation (iPhone)
~0.4s
Visual Understanding (iPhone)
<2GB
Memory Footprint

Overview

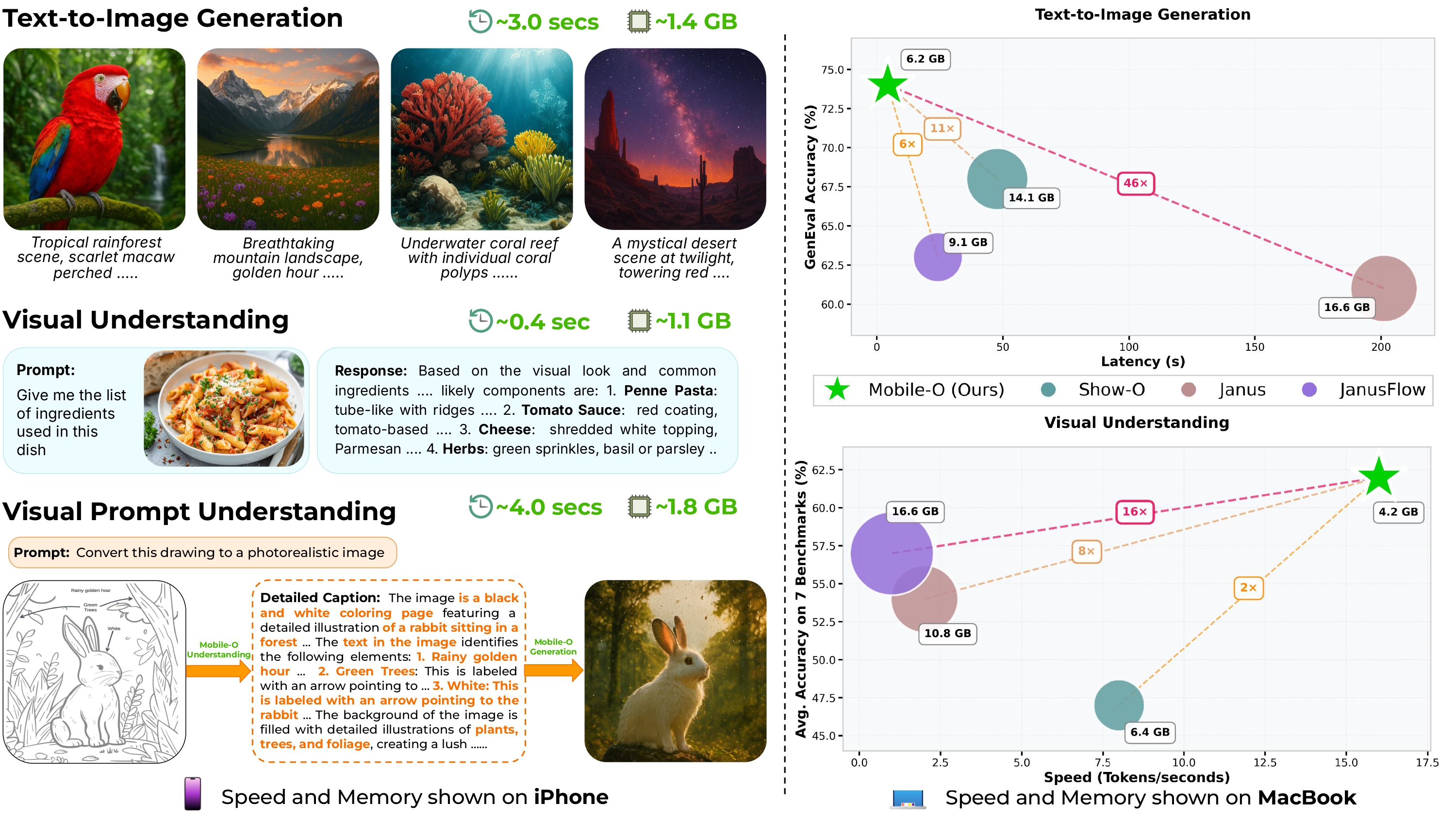

Mobile-O is designed specifically for mobile and edge deployment. It combines a vision-language model with a diffusion-based image generator in a single unified architecture, enabling real-time multimodal understanding (VQA, OCR, reasoning) and high-quality image generation at 512×512 resolution — all with a memory footprint under 2GB.

Key result: Mobile-O generates 512×512 images in ~3 seconds and performs visual understanding in ~0.4 seconds on iPhone, with only 1.6B total parameters.


Mobile-O Overview

Capabilities

Image Generation

🖼️ Image Generation

High-quality text-to-image synthesis at 512×512 resolution using a lightweight DiT decoder

Image Understanding

👁️ Image Understanding

Visual question answering, OCR, and multimodal reasoning powered by FastVLM

Image Editing

✏️ Image Editing

Instruction-based image editing combining understanding and generation pipelines

💬 Text → Text
🖼️ Image → Text
✨ Text → Image
✏️ Text + Image → Image
🔄 Unified Training

Architecture

Mobile-O Architecture

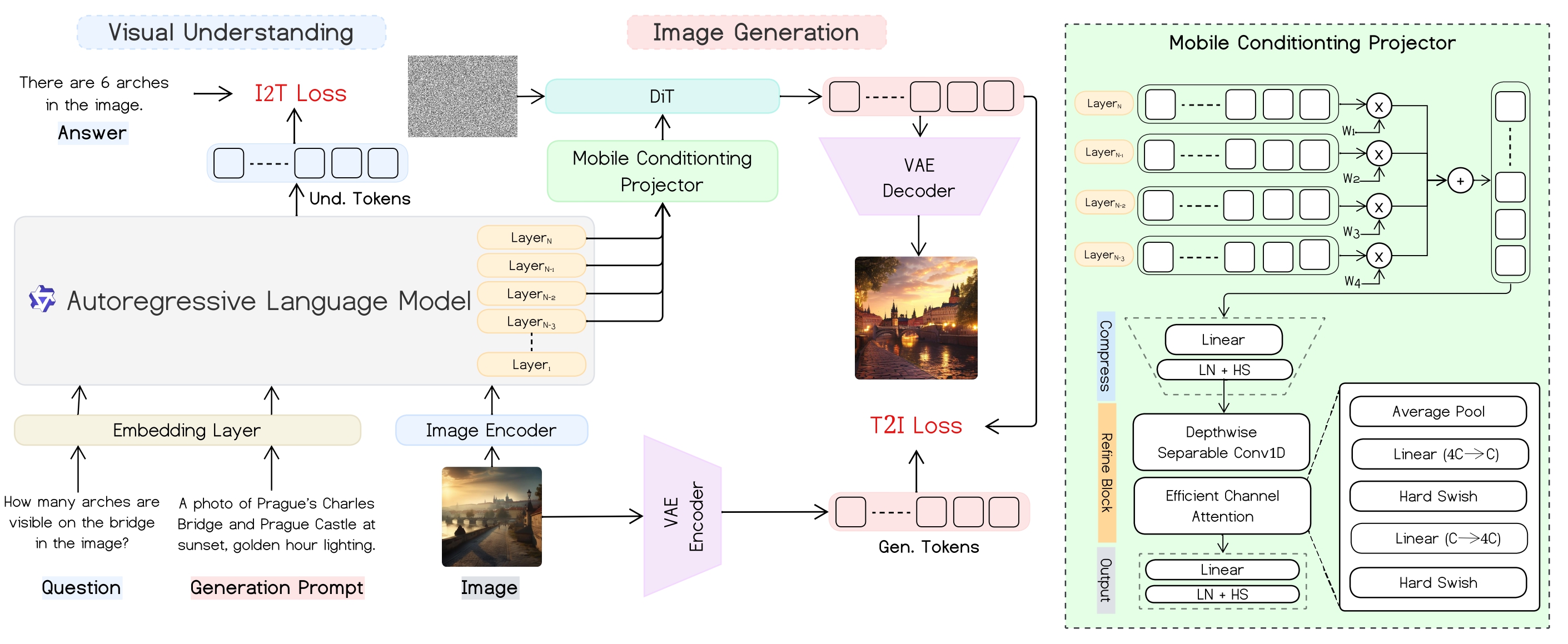

Overall architecture of Mobile-O: a unified vision–language–diffusion model for on-device multimodal understanding and generation.

Vision-Language Model

FastVLM-0.5B combining FastViT as vision encoder and Qwen2-0.5B as the autoregressive language backbone for multimodal understanding.

FastViT + Qwen2-0.5B

Diffusion Decoder

SANA-600M-512, a lightweight linear DiT-style diffusion transformer paired with a VAE encoder-decoder for text-to-image generation at 512×512.

Linear DiT + VAE

Mobile Conditioning Projector

A novel lightweight connector (~2.4M params) bridging VLM and diffusion decoder using layerwise feature fusion with temperature-scaled learnable weights.

~2.4M Parameters

Training Pipeline

1

Cross-Modal Alignment

Pretrain DiT and MCP on 4M text-image pairs. Visual encoders, LLM, and VAE are frozen.

📦 4M pairs →
2

Supervised Fine-tuning

Finetune DiT and MCP on ~105K curated prompt-image pairs from BLIP3o + ShareGPT-4o.

📦 ~105K pairs →
3

Unified Post-Training

Post-train DiT, MCP, LLM (LoRA), and visual encoder on ~105K quadruplet samples.

📦 ~105K quadruplets
Training Pipeline

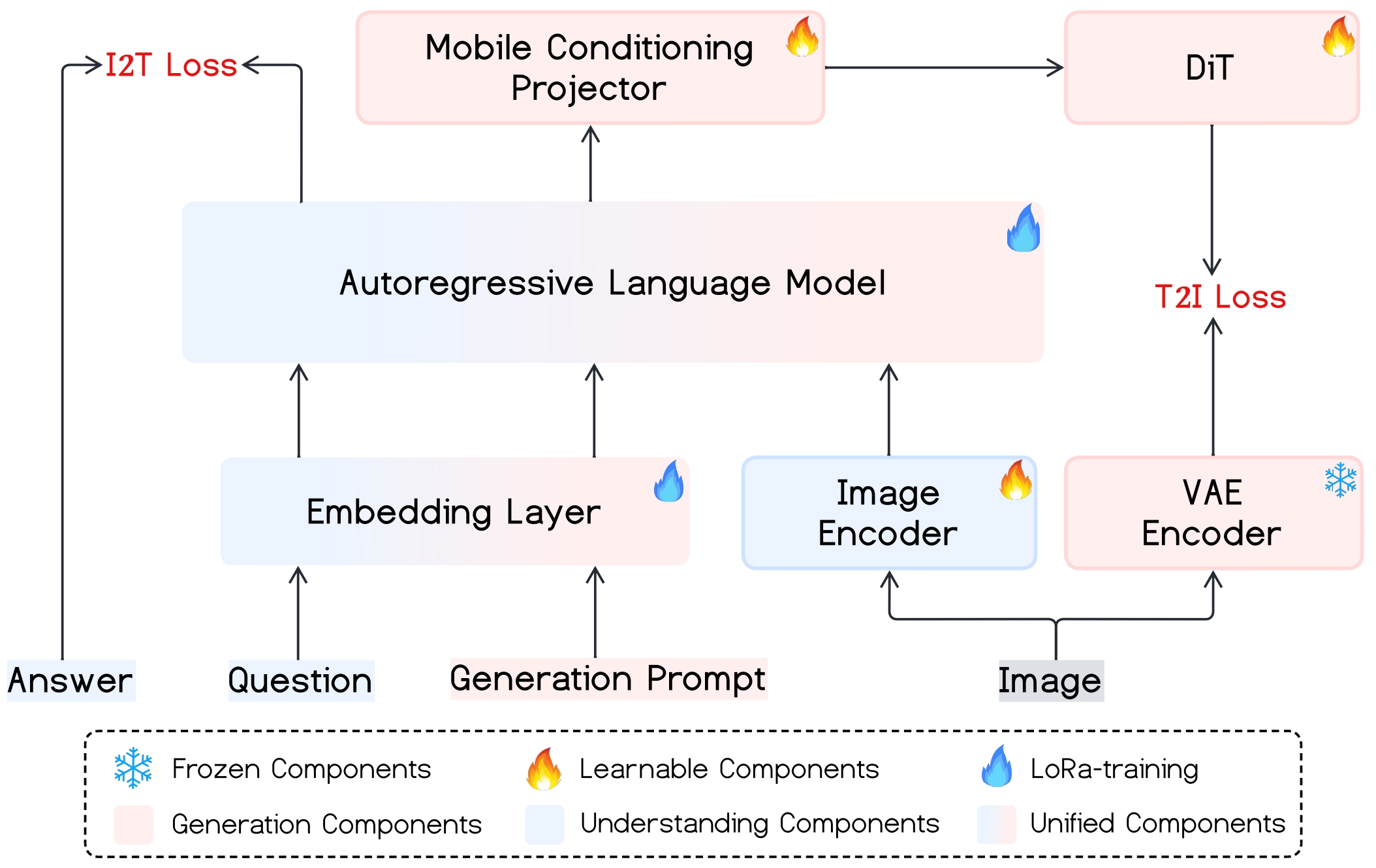

Unified multimodal post-training: jointly optimizing image generation and visual understanding via a multi-task objective.

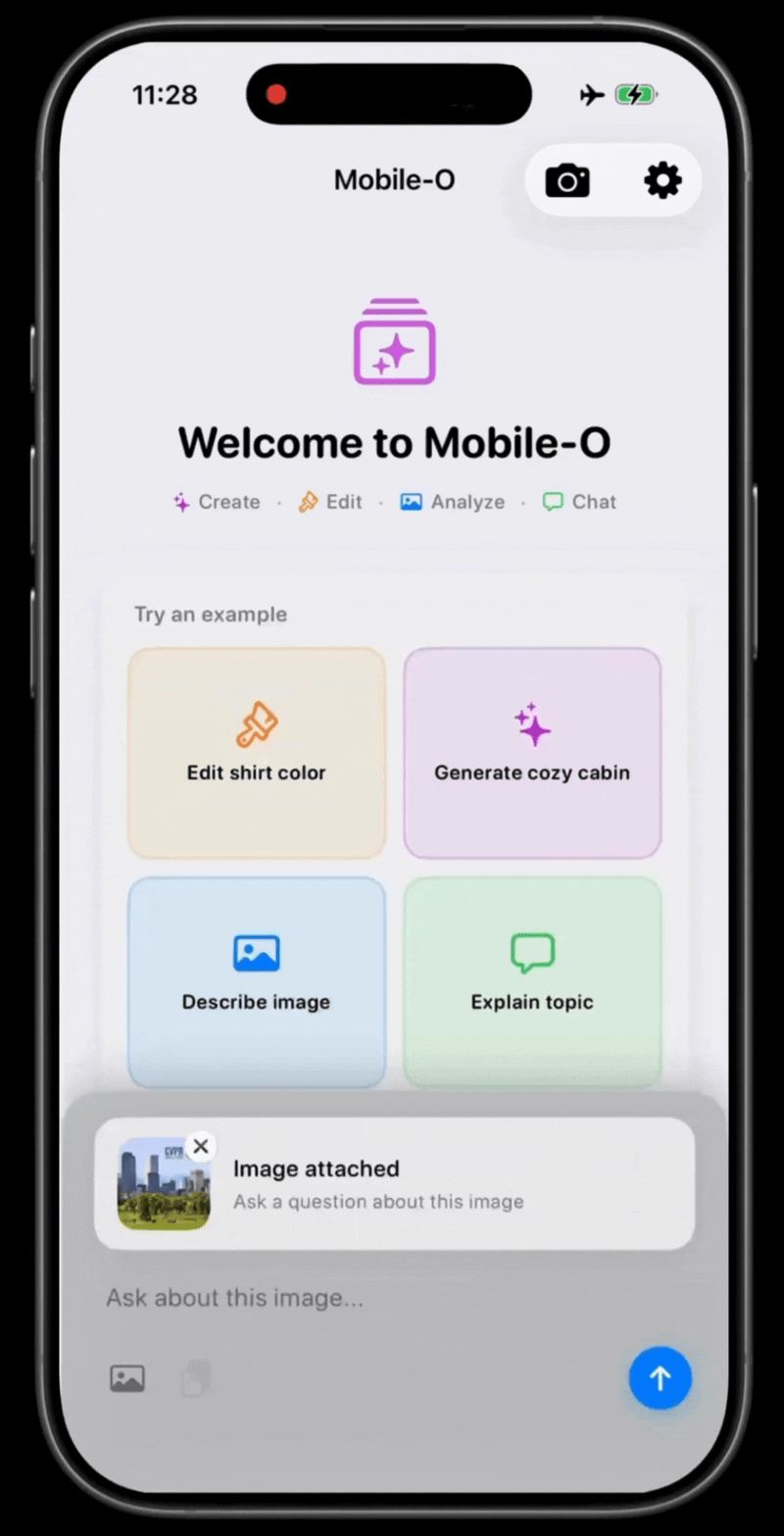

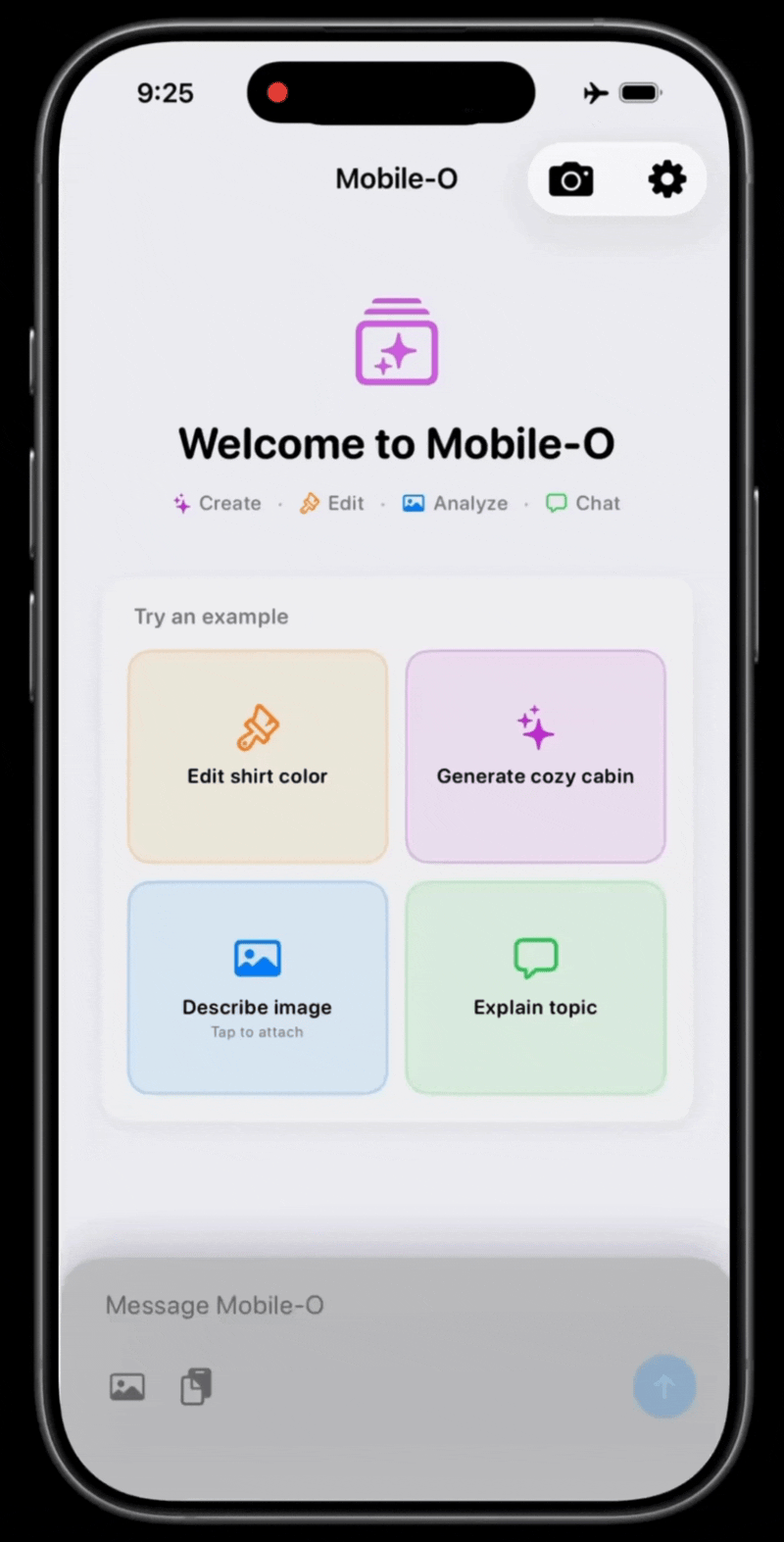

Mobile App

Mobile-O runs entirely on-device with no cloud dependency. We release the full source code of the iOS app along with optimized MLX and CoreML model components.

Download on the App Store
📱
iOS App Source Code
Mobile-O-App
 🧩
MLX & CoreML Models
🤗 HuggingFace
⚡ ~3s
Image Generation
👁️ ~0.4s
Visual Understanding
💾 <2GB
Memory Footprint

Model Checkpoints

Model Total Params Download
Mobile-O-0.5B 1.6B 🤗 HuggingFace
Mobile-O-1.5B 3.5B 🤗 HuggingFace
Mobile-O-0.5B-iOS iOS Components 🤗 HuggingFace

📦 Training Datasets

Stage Description Download
Pre-training 4M text-image pairs (JourneyDB) 🤗 HuggingFace
SFT ~105K curated prompt-image pairs 🤗 HuggingFace
Post-training ~105K unified quadruplet samples 🤗 HuggingFace

Qualitative Results

✨

Mobile-O Samples

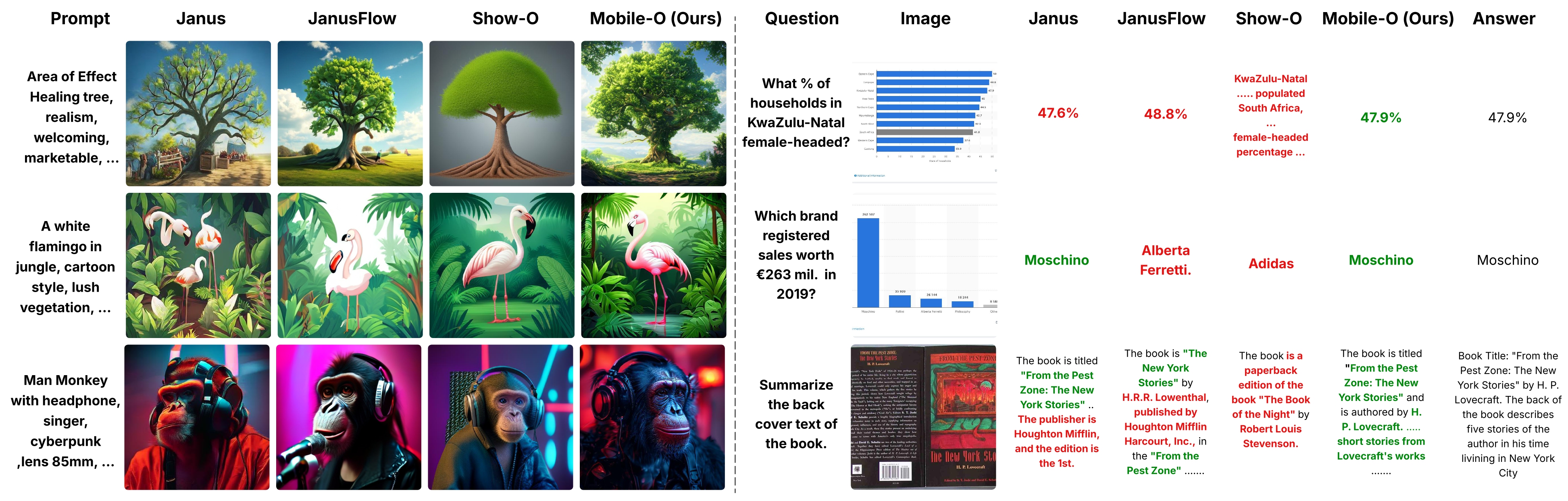

Qualitative examples of understanding, generation, and editing from Mobile-O

Qualitative Results
🖼️

Generation Results

Extended qualitative generation samples from Mobile-O

Generation Results
⚔️

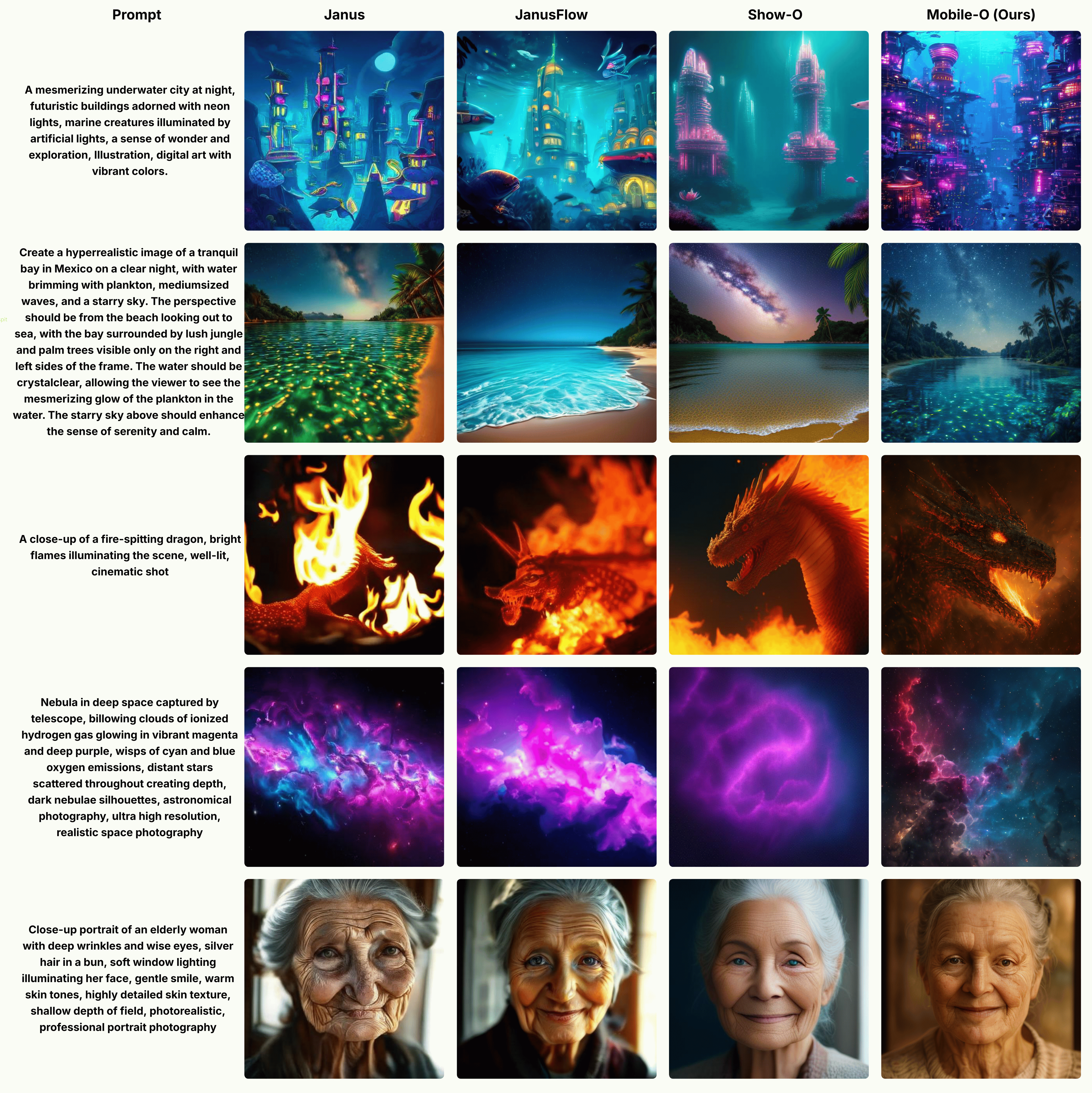

Generation Comparison

Side-by-side generation comparison with other models

Generation Comparison
🔍

Understanding Comparison

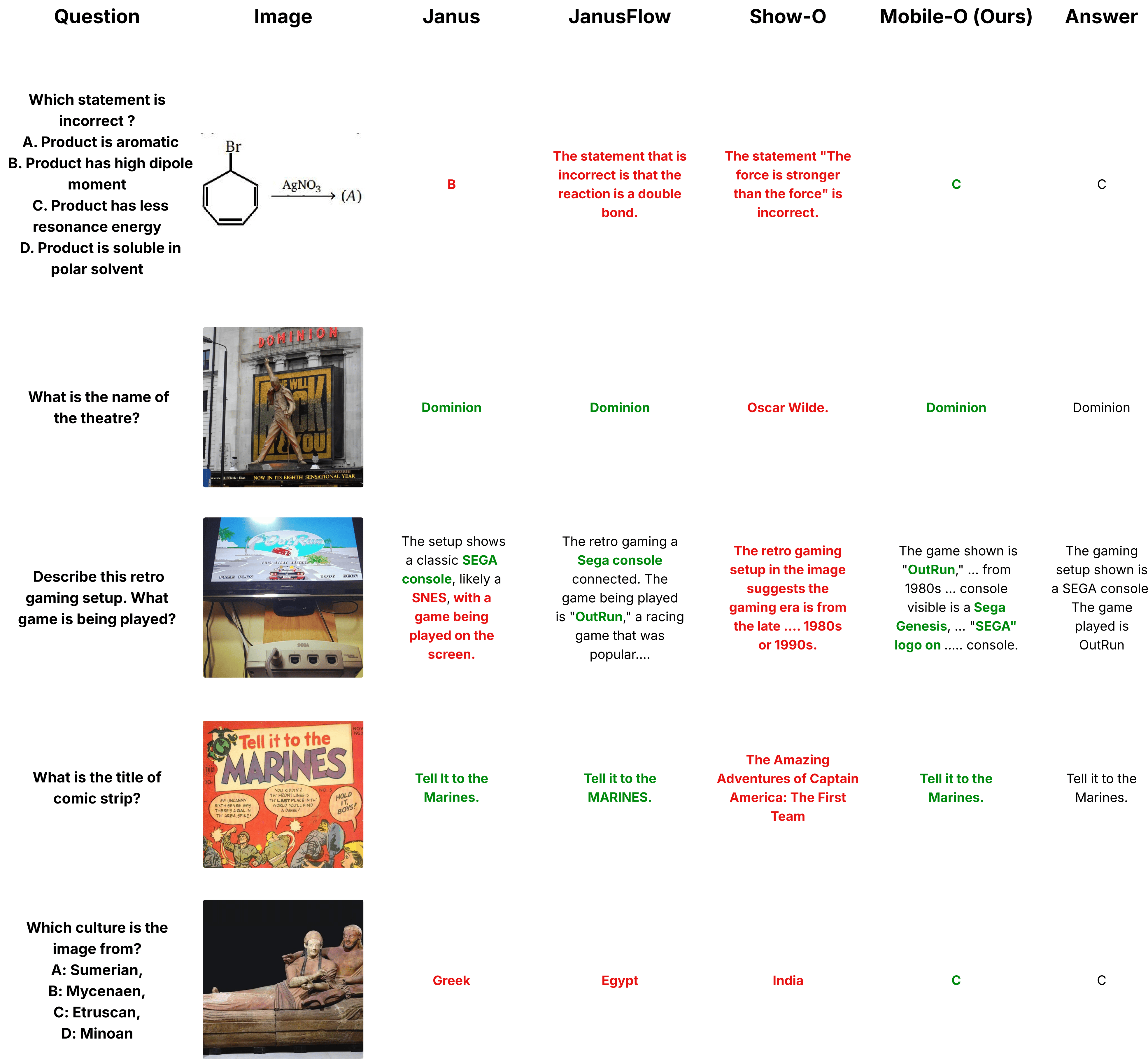

Side-by-side understanding comparison with other models

Understanding Comparison

Quick Start

Install

conda create -n mobileo python=3.12 -y conda activate mobileo pip install -r requirements.txt

Download Checkpoint

python -c "from huggingface_hub import snapshot_download; print(snapshot_download(repo_id='Amshaker/Mobile-O-0.5B', repo_type='model', local_dir='checkpoints', allow_patterns=['final_merged_model_23620/*']))"

Image Understanding

python infer_und.py --model_path /path/to/checkpoint/ --image_path assets/cute_cat.png --prompt "What is in the image?"

Image Generation

python infer_gen.py --model_path /path/to/checkpoint/ --prompt "A vibrant tropical rainforest scene with a scarlet macaw perched on a moss-covered branch"

Image Editing

python infer_edit.py --model_path /path/to/checkpoint/ --image_path assets/cute_cat.png --prompt "Make the cat wear a hat"

Citation

@article{shaker2026mobileo,
  title={Mobile-O: Unified Multimodal Understanding and Generation on Mobile Device},
  author={Shaker, Abdelrahman and Heakl, Ahmed and Muhammad, Jaseel and Thawkar, Ritesh and Thawakar, Omkar and Li, Senmao and Cholakkal, Hisham and Reid, Ian and Xing, Eric P. and Khan, Salman and Khan, Fahad Shahbaz},
  journal={arXiv preprint arXiv:XXXX.XXXXX},
  year={2026}
}

Acknowledgements

This repo is partially built upon BLIP3o. Thanks to all the contributors for their great efforts.

License

⚠️

This project is released under a non-commercial research license. The code, models, datasets, and app are intended solely for academic and research purposes. Please refer to the LICENSE file for full details.
